$15.95 GST
Reliable 3.7V Lithium Polymer battery with a capacity of 3100mAh, ideal for various applications.
The LithiumCell 3.7V 3100mAh Lithium Polymer (LiPo) battery provides dependable power for your devices. Designed for reliability and consistent performance, this battery is suitable for a range of applications where a compact and lightweight power source is required. Always refer to the device’s specifications to ensure correct voltage and capacity requirements.
3D viewer pending.
| Shipping Weight G | 42 |
|---|---|
| Source Sku | TS-B122 |
| Source Product Id | 44060 |
| Shipping Length Mm | 86 |
| Shipping Width Mm | 51 |
| Shipping Height Mm | 11 |
| Weight G | 42 |
| Length Mm | 86 |
| Width Mm | 51 |
| Height Mm | 11 |
| Battery Size Code | 504882 |
| Nominal Voltage | 3.7 |
| Capacity Mah | 3100 |
| Battery Chemistry | Lithium-ion polymer |
| Rated Energy Wh | 11.47 |
| Main Connector | JST-PH |
| Protection Circuit | Yes |
| Max Discharge C | 0.5 |
| Connector Pitch Mm | 2 |
| Connector End Count | 2 |

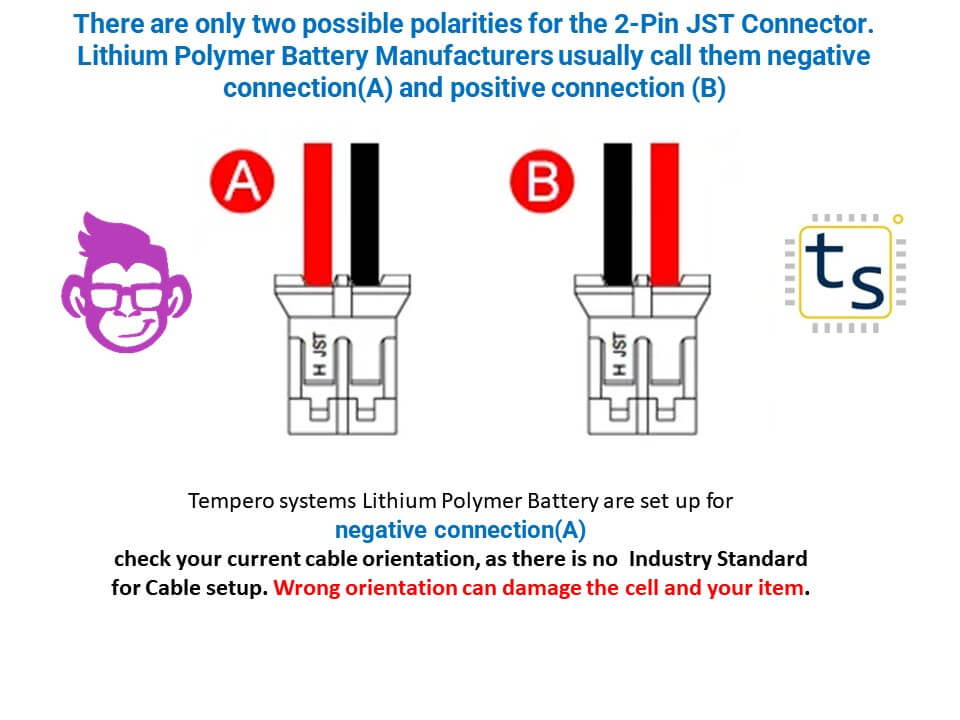

| Polarity | is reversed |
| Overcharge Protection | Yes |
| Overdischarge Protection | Yes |
| Storage Temperature | -5℃~35℃ |
| Charge Voltage Limit V | 4.2 |
| Discharge Cutoff Voltage V | 2.75 |
| Discharge Method | Constant current 0.2 C end voltage 2.75V. |
| Application Notes | RC, Raspberry Pi, Arduino, Maker, IoT |
| Package Includes | the necessary protection circuitry |
| Supplier Taxonomy Notes | e from going too high (over-charging) or having a low over-discharge, which means the battery will cut out when completely dead at 3 |
| Air Freight Allowed | Yes |
| Road Freight Allowed | Yes |
| Warning Notes | This battery is NOT suitable for RC cars, planes, drones, or other devices that require high power(current) |
| Dangerous Goods Class | Lithium battery - review DG classification |
| Dimensions | 86 x 51 x 11 mm |
| Compatible Models | Reviewed against supplier snapshot TS-B122: 3100mAh 3.7V Lithium-ion polymer with JST-PH. Not for high-current RC/drone use unless supplier rating explicitly supports it. |
| Shipping Weight G | 42 |
|---|---|
| Source Sku | TS-B122 |
| Source Product Id | 44060 |
| Shipping Length Mm | 86 |
| Shipping Width Mm | 51 |
| Shipping Height Mm | 11 |
| Weight | 42 g Use Weight to compare Battery products with reviewed source evidence and consistent Studio output. |
| Length | 86 mm Use Length to compare Battery products with reviewed source evidence and consistent Studio output. |
| Width | 51 mm Use Width to compare Battery products with reviewed source evidence and consistent Studio output. |
| Height | 11 mm Use Height to compare Battery products with reviewed source evidence and consistent Studio output. |
| Battery Size Code | 504882 Use Battery Size Code to compare Battery products with reviewed source evidence and consistent Studio output. |
| Nominal Voltage | 3.7 V Use Nominal Voltage to compare Battery products with reviewed source evidence and consistent Studio output. |
| Capacity | 3100 mAh Use Capacity to compare Battery products with reviewed source evidence and consistent Studio output. |
| Battery Chemistry | Lithium-ion polymer Use Battery Chemistry to compare Battery products with reviewed source evidence and consistent Studio output. |
| Size Code | 504882 |
| Voltage V | 3.7 |
| Rated Energy | 11.47 Wh Use Rated Energy to compare Battery products with reviewed source evidence and consistent Studio output. |
| Connector | JST-PH |
| Protection Circuit | Yes Use Protection Circuit to compare Battery products with reviewed source evidence and consistent Studio output. |
| Max Discharge Rate | 0.5 C Maximum C rating where supplied. |
| Thickness | 4.8 mm Use Thickness to compare Battery products with reviewed source evidence and consistent Studio output. |
| Connector Pitch | 2 mm Connector pitch such as JST-PH 2.0mm where known. |
| Connector End Count | 2 Number of connector ends/leads where relevant. |
| Polarity | is reversed Polarity information for connector safety. |
| Overcharge Protection | Yes Overcharge protection claim where supplied. |
| Overdischarge Protection | Yes Over-discharge protection claim where supplied. |
| Storage Temperature | -5℃~35℃ Storage temperature range where supplied. |
| Charge Voltage Limit | 4.2 V Maximum charge voltage limit where supplied. |
| Discharge Cutoff Voltage | 2.75 V Minimum discharge or cut-off voltage where supplied. |
| Discharge Method | Constant current 0.2 C end voltage 2.75V. Discharge method/test condition where supplied. |
| Application Notes | RC, Raspberry Pi, Arduino, Maker, IoT Maker/tool/use-case notes such as Arduino, RC, sensor, IoT, toy, GPS, lighting, or wearable use. |
| Package Includes | the necessary protection circuitry Package contents or included accessory notes where supplied. |
| Supplier Taxonomy Notes | e from going too high (over-charging) or having a low over-discharge, which means the battery will cut out when completely dead at 3 Useful source categories, tags, product family, and supplier taxonomy notes for review. |
| Air Freight Allowed | Yes Whether supplier evidence indicates air freight is allowed. |
| Road Freight Allowed | Yes Whether supplier evidence indicates road freight is allowed. |
| Warning Notes | This battery is NOT suitable for RC cars, planes, drones, or other devices that require high power(current) Use Warning Notes to compare Battery products with reviewed source evidence and consistent Studio output. |
| Main Connector | JST-PH Use Main Connector to compare Battery products with reviewed source evidence and consistent Studio output. |
| Dangerous Goods Class | Lithium battery - review DG classification Use Dangerous Goods Class to compare Battery products with reviewed source evidence and consistent Studio output. |
| Dimensions | 86 x 51 x 11 mm |
| Weight | 42 g |
Reviewed against supplier snapshot TS-B122: 3100mAh 3.7V Lithium-ion polymer with JST-PH. Not for high-current RC/drone use unless supplier rating explicitly supports it.
